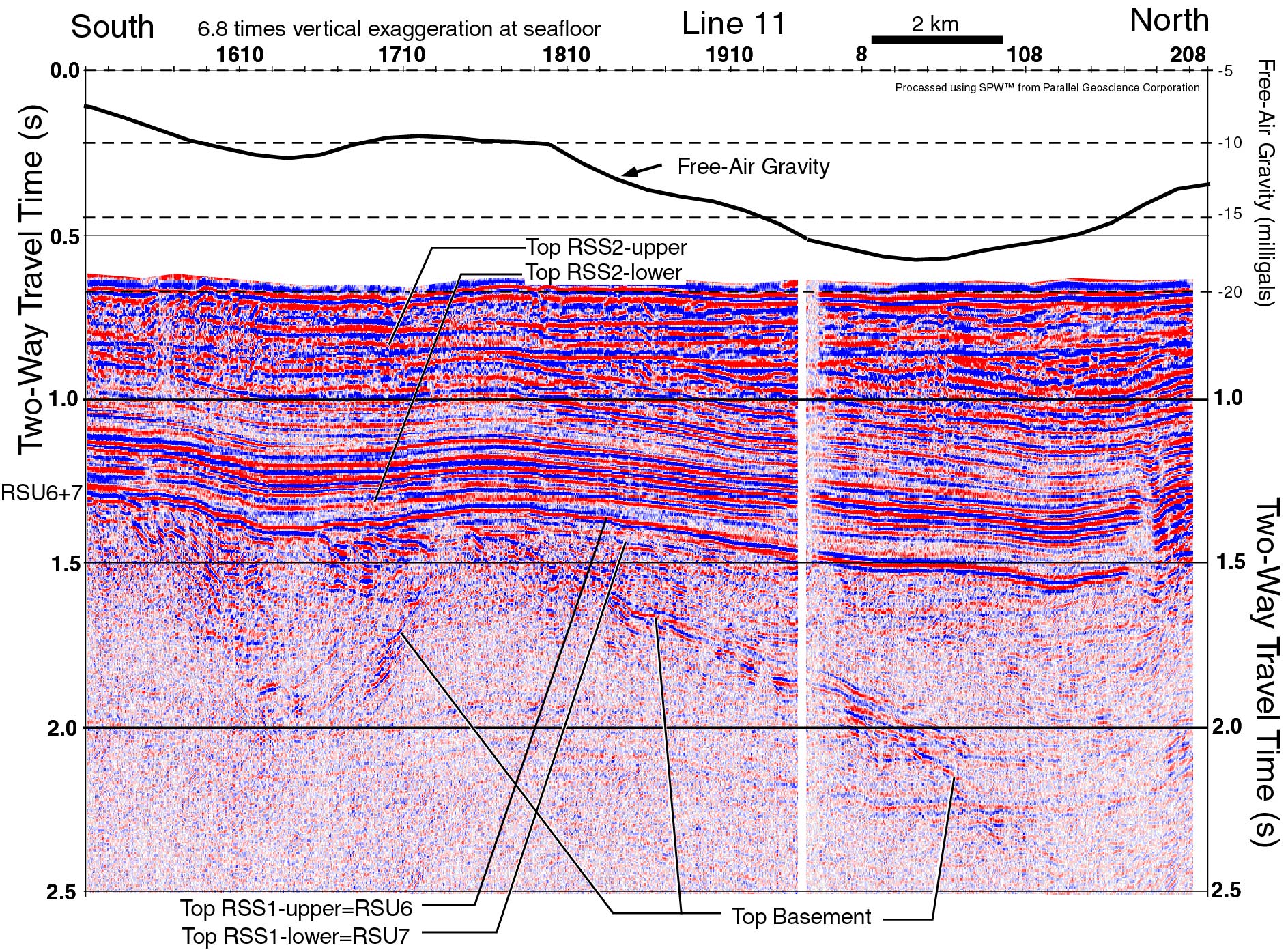

Color version of Figure 5b, located in Figure 3. The interpreted version
of this figure is shown in black and white in the published article. Vertical
exaggeration is about 7 at the seafloor on this migrated profile. The free-air
gravity shows lows above a flat sea floor. These lows are related to buried
basins filled with low density material.
|
|
